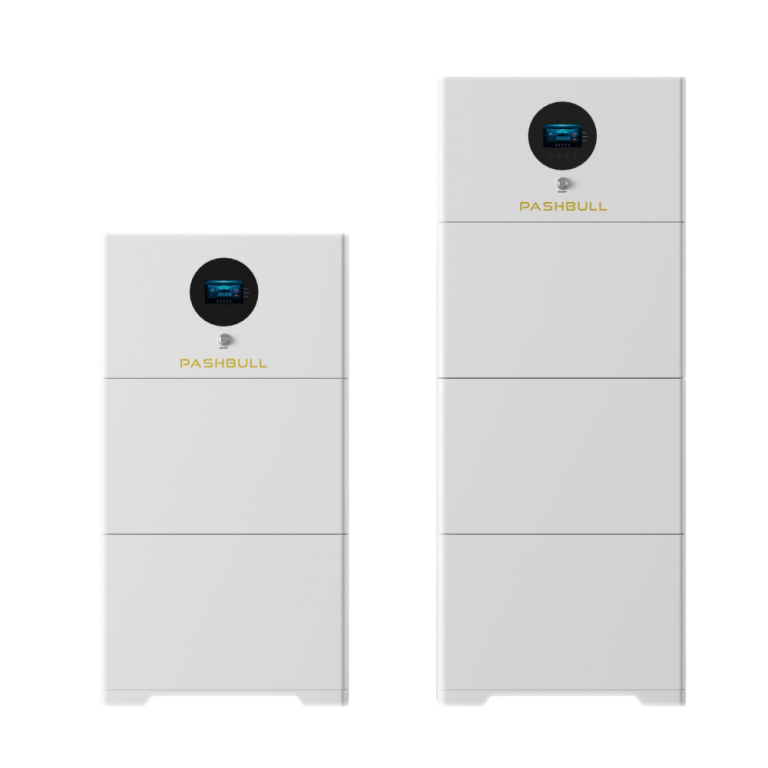

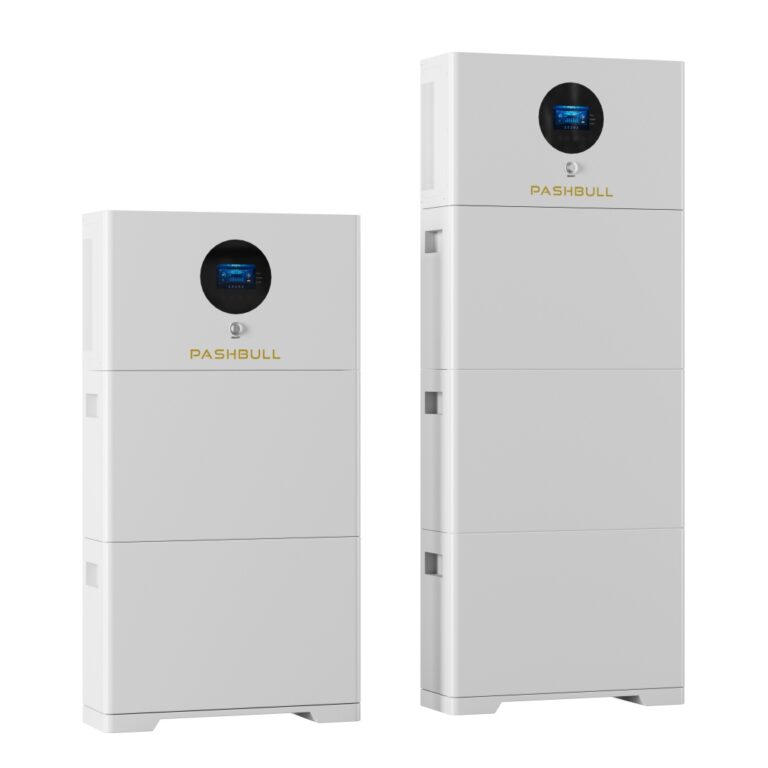

Stackable Battery
Your All-In-One Energy Storage Systems
5KWh / 10KWh / 15KWh
Looking For An All-In-One Power Storage Device?
Our stackable battery design energy storage system integrates inverter and battery modules, provides flexible power expansion, and is easy to install.
The battery adopts the highest grade lithium iron phosphate (LiFePO4) cells, combined with scientific and reasonable internal design and fine processing, to prolong the life of the system safely and effectively.
Diversified product selection:
5KWh / 10KWh / 15KWh
All-in-one power storage device

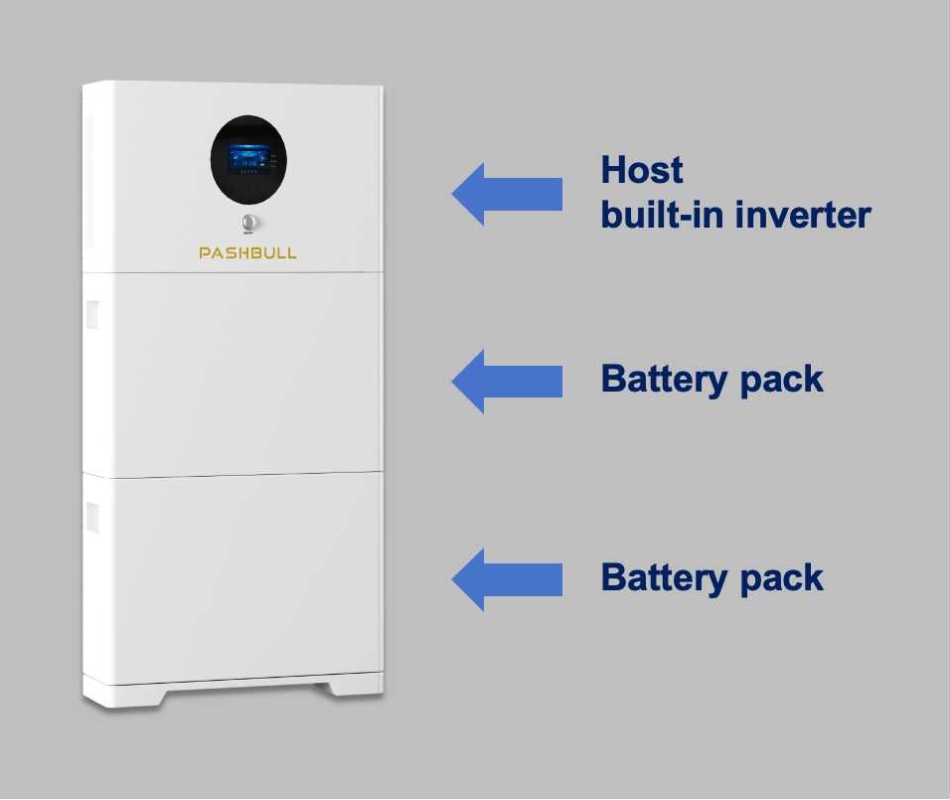

The design of the inverter + battery makes it easier to use

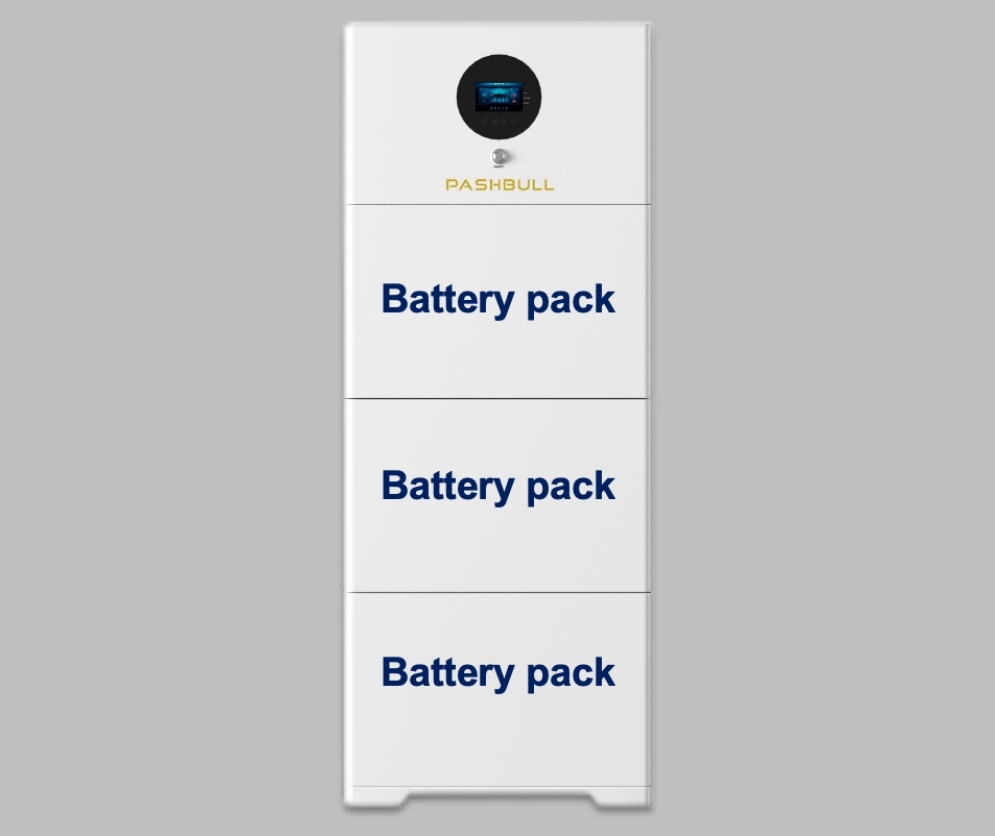

Easy to expand capacity
Modular design and capacity expansion is simpler and more convenient.
Flat Stand Design
It can stand against the wall without taking up space.
Products Functions
- Pure sine wave solar inverter
- Output power factor
- Parallel operation of up to 9 units
- High PV input voltage range
- Battery-independent design
- Built-in 100AMPPT solar charger
- Battery equalization function to optimize battery performance and extend the lifecycle
- Built-in anti-dusk kit for harsh environments
What is a car start-stop lithium battery?
- Use brand new high-quality battery cells to ensure long cycle life and security.
- Provide 5-year warranty for battery, 3-year warranty for inverter.
- Certified by CE, MSDS, UN38.3.
- 5KWh/10KWh/15KWh Large capacity which can meet more needs of customers.
- The flat stand design can save storage space.
- Built-in inverter, no adaptation problem.
- The logo and the color of the shell can be customized.
Stackable Battery Energy Storage System Comparison
| Modle | PBSA51100 | PBSA51200 | PBSA51300 |
|---|---|---|---|
| Rated Capacity | 100Ah | 200Ah | 300Ah |
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Energy | 5.12KWh | 10.24KWh | 15.36KWh |
| Battery Weight | 48Kg(battery pack) | 96Kg(battery pack) | 144Kg(battery pack) |
| Size (mm) | 588*430*195 (Monomer) | ||
| Battery Type | Lithium Iron Phosphate (LiFePO4) | ||
| Life Cycle Character | ≥6000 Cycles (80%DOD) | ||
| Charge Way | CP/VP | ||
| Charge Current | 0.5C (Standard) | ||
| Maximum Charge Current | Max1C @ 25℃ | ||
| Charge Cut-off Voltage | 58.4V | ||
| Dischargeg Way | CP/VP | ||
| Discharge Current | 1C | ||
| Maximum Discharge Current | Max1C @ 25℃ | ||
| Discharge Cut-off Voltage | 44.8V | ||
| Communication | CAN, RS485, RS232 | ||
| Charge Temperature | 0℃ ~ +50℃ | ||
| Discharge Temperature | -20℃ ~ +55℃ | ||
| Inverter | 5KW | ||
| Warranty | 5 years for battery, 3 years for inverter | ||

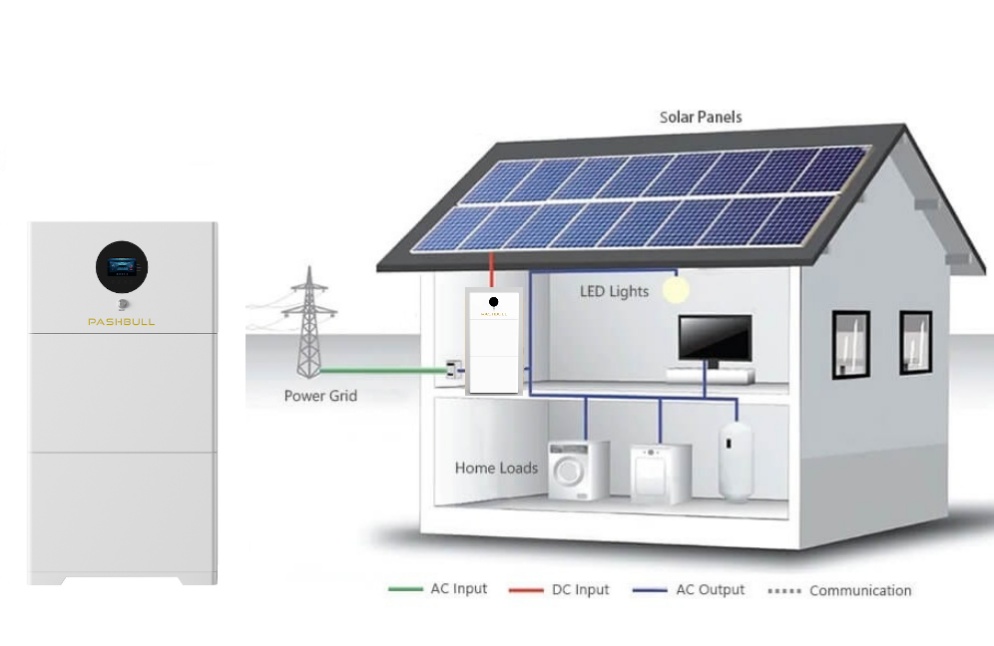

Applications
The stackable battery energy storage system can store electricity for you effectively.
It works with:
～The home energy storage system
～Communication base station, data center,
～Communication outdoor cabinet,
～Solar hybrid power system
It reduces your reliance on the grid by storing your solar energy for house appliance use.
Or keep power stays on when grid outages.
Frequently Asked Questions.
Our stackable batteries with a voltage of 51.2V, and a wide power range of 5KWh/10KWh/15KWh are available.
6000 cycles to 80% capacity and up to 10-15 years of availability.
Using brand new high-quality battery cells ensure long cycle life and security.
Yes, Built-in inverter, no adaptation problem.
We offer the 5-year warranty for battery and 3-year warranty for inverter. And are responsible for our clients. Our battery quality management is very strict and the return rate is much lower than the market average. However, everything is not always 100%, if the battery fails within 5 years, we will provide you with prompt and perfect after-sales service.
The battery shell is made of high-strength sheet metal stainless steel, which is impact and impact-resistant and anti-oxidation.
