Stackable Battery
Your All-In-One Energy Storage Systems
5KWh / 10KWh / 15KWh
Looking For An All-In-One Power Storage Device?
Our stackable battery design energy storage system integrates inverter and battery modules, provides flexible power expansion, and is easy to install.
The battery adopts the highest grade lithium iron phosphate (LiFePO4) cells, combined with scientific and reasonable internal design and fine processing, to prolong the life of the system safely and effectively.

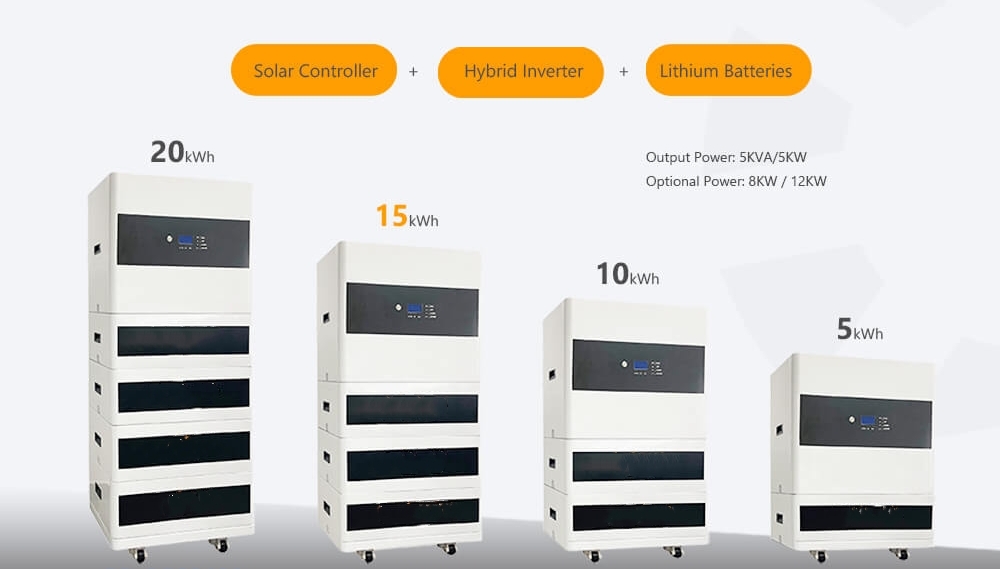

Diversified product selection:
5KWh / 10KWh / 15KWh
All-in-one power storage device
The design of the inverter + battery makes it easier to use
Easy to expand capacity
Modular design and capacity expansion is simpler and more convenient.
Flat Stand Design
It can stand against the wall without taking up space.
Products Functions
- Sine wave output
- There are 4 charging modes to choose from: solar power only, mains first, solar first, and hybrid charging
- It has two output modes of mains bypass and inverter, with an uninterrupted power supply function
- With power saving mode function, reduce no-load loss Intelligent adjustable speed fan, efficient heat dissipation, prolong system life
Inverter Features:
- Output power factor 1
- Parallel operation of up to 9 units
- High PV input voltage range
- Battery-independent design
- Built-in 100AMPPT solar charger
- Battery equalization function to optimize battery performance and extend the lifecycle
- Built-in anti-dusk kit for harsh environment
Stackable Battery Energy Storage System Comparison
| Modle | PBSA 51.2V 100Ah |
PBSB 51.2V 200Ah |
PBSC 51.2V 300Ah |
|---|---|---|---|
| Rated Capacity | 100Ah | 200Ah | 300Ah |
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Battery Weight | 48Kg(battery pack) | 96Kg(battery pack) | 144Kg(battery pack) |
| Size (mm) | 588*430*195 (Monomer) | ||
| Battery Type | Lithium Iron Phosphate (LiFePO4) | ||
| Life Cycle Character | ≥6000 Cycles (80%DOD) | ||
| Charge Way | CC / CV | ||
| Charge Current | 0.2C (Standard) | ||
| Maximum Charge Current | Max1C @ 25℃ | ||
| Charge Cut-off Voltage | 58.4V | ||
| Dischargeg Way | CP / VP | ||
| Discharge Current | 1C | ||
| Maximum Discharge Current | Max1C @ 25℃ | ||
| Discharge Cut-off Voltage | 44.8V | ||
| Communication | CAN, RS485, RS232 | ||
| Charge Temperature | 0℃ ~ +50℃ | ||
| Discharge Temperature | -20℃ ~ +55℃ | ||
| Inverter | 3.5KW/ 5KW | ||
| Warranty | 11 Years | ||
| Build-in Inverter | 3.5KW | 5.5KW |
|---|---|---|
| Rated Power | 3500VA/3500W | 5500VA/ 5500W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| ACVoltage Regulation(Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency (Peak) | up to 93.5% | |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
| Maximum PV Array Power | 5500 W | 5500 W |
| MPPT Range @ Operating Voltage | 120-450 VDC | 120-450 VDC |
| Maximum Solar Charge Current | 100A | 100A |
| Maximum AC Charge Current | 80 A | 80 A |
| Maximum Charge Current | 100A | 100A |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 588X310X195 | |
| Net Weight (kgs) | 9 | 10 |
| Communication Interface | USB/RS232 | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°Cto60°C | |
Products Benefits
- Use brand new high-quality battery cells to ensure long cycle life and security.
- Provide 11-year warranty service.
- Certified by CE, MSDS, UN38.3.
- 5KWh/10KWh/15KWh Large capacity which can meet more needs of customers.
- The flat stand design can save storage space.
- Built-in inverter, no adaptation problem.
- The logo and the color of the shell can be customized.

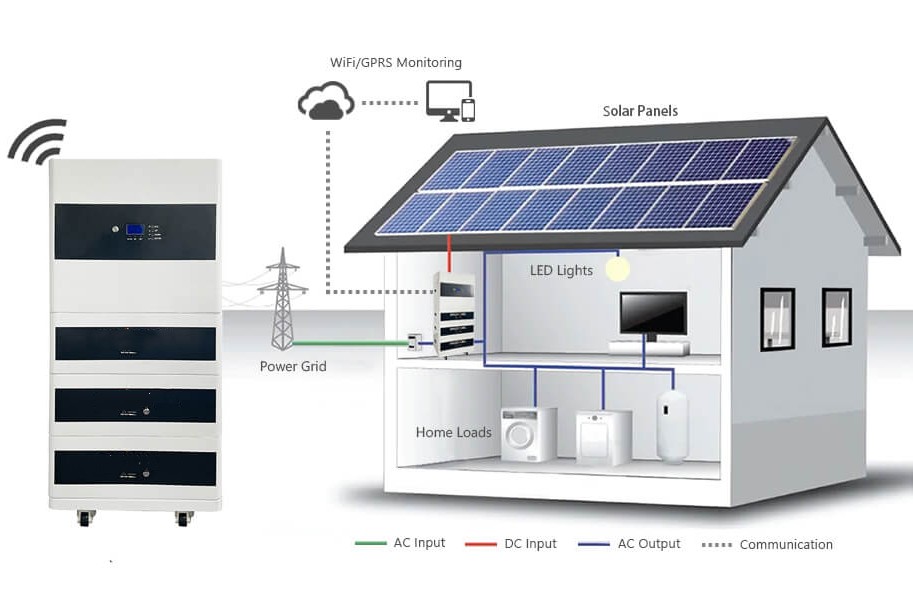

Applications
The stackable battery energy storage system can store electricity for you effectively.
It works with:
～The home energy storage system
～Communication base station, data center,
～Communication outdoor cabinet,
～Solar hybrid power system
It reduces your reliance on the grid by storing your solar energy for house appliance use.
Or keep power stays on when grid outages.
Product Advantages
Why Choose LifePO4 For Home Battery?
1. Super Long Life
LifePO4 battery has 3000-5000 times cycle life. Low self-consumption, and long storage time.
2. Safer
Made of lithium iron phosphate iron, It is not easy to catch fire and explode.
3. High Energy & Low Weight
Has 50% more capacity than a lead-acid battery, but 70% less weight.
4.High-temperature Performance
The working temperature range is -20 ℃ ~ 80 ℃, But lead acid is -20℃~50℃.
5. Save Postage
The same volume of LifePO4 battery weighs 70% less than lead-acid. Save your shipping costs.
6. Environmental Friendly
Non-toxic and non-polluting, can be recycled and reused.
Frequently Asked Questions.
Our stackable batteries with a voltage of 51.2V, and a wide power range of 5KWh/10KWh/15KWh are available.
6000 cycles to 80% capacity and up to 10-15 years of availability.
Using brand new high-quality battery cells ensure long cycle life and security.
Yes, Built-in inverter, no adaptation problem.
We offer an 11-year warranty and are responsible for our clients. Our battery quality management is very strict and the return rate is much lower than the market average. However, everything is not always 100%, if the battery fails within 11 years, we will provide you with prompt and perfect after-sales service.
The battery shell is made of high-strength sheet metal stainless steel, which is impact and impact-resistant and anti-oxidation.
